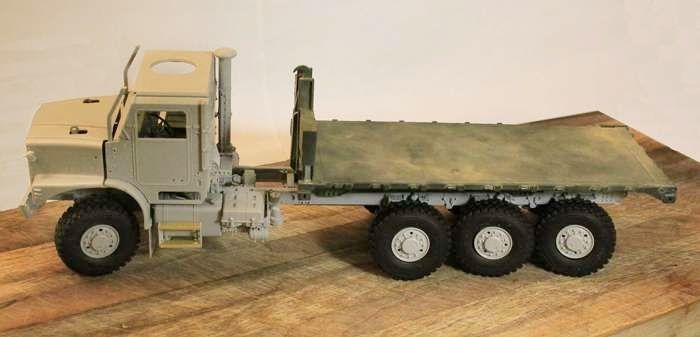

Mk23 MTVR & 16.6 ton LHS
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Saturday, January 21, 2017 - 06:29 PM GMT+7
I made this alteration to both the 16.5 ton 8x8 and the smaller 4x4 making later cab construction much easier.
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Sunday, January 22, 2017 - 08:11 AM GMT+7
Spent last night working on shortening the loadbox. Inside dimension of the box should be 109.6 inches long.

165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Sunday, January 22, 2017 - 08:35 AM GMT+7

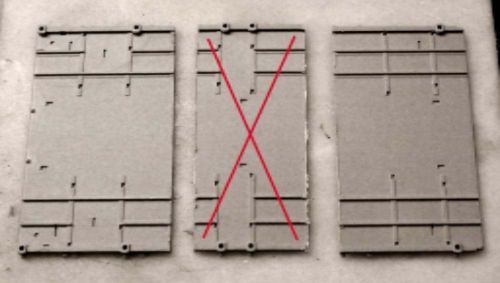

Chopping the loadbox floor. Vehicle front is to the right.

Top view:


Bottom view:


Portion removed approximately 1 - 1/4 inches wide.
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Sunday, January 22, 2017 - 09:19 AM GMT+7

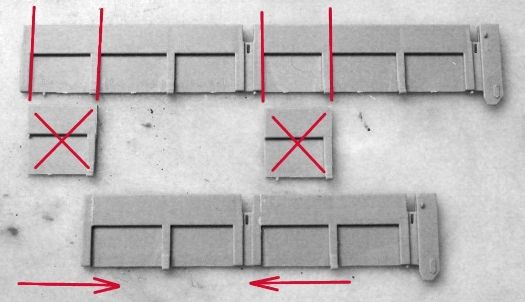

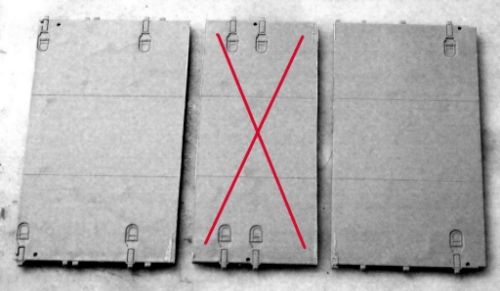

Plan for chopping the sideboards of the loadbox:


Note that the center division of the three uprights on each sideboard panel is slightly wider than the other two.
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Monday, January 23, 2017 - 09:08 AM GMT+7
By any chance would someone have straight-on, photos or dimensional drawings for the Container Handling Unit (CHU)? Clearly overall dimensions of this lifting structure (less attachment hooks) must be 8 x 8 feet.

(Original CHU design shown in line drawing.)

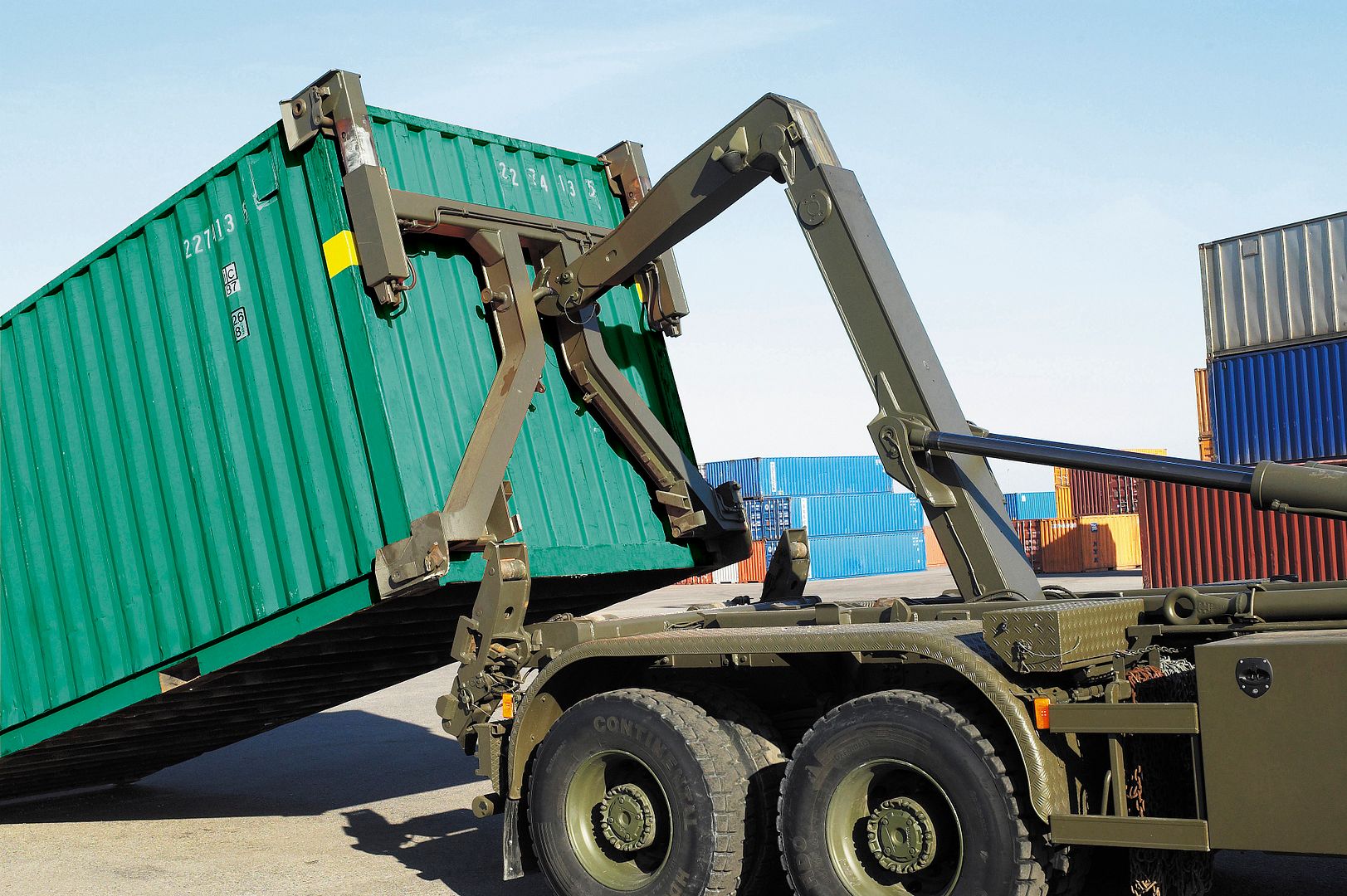

(Enhanced design (E-CHU) shown in photograph.)
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Saturday, January 28, 2017 - 04:32 PM GMT+7
Working now on the bobber short bed undercarriage:

Re-spacing some of the support gussets and slightly relocating the smaller front mud flaps towards the rear of the box.
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Saturday, January 28, 2017 - 04:33 PM GMT+7

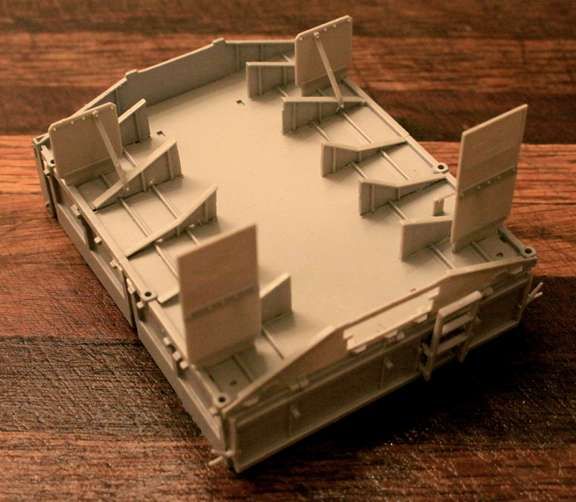

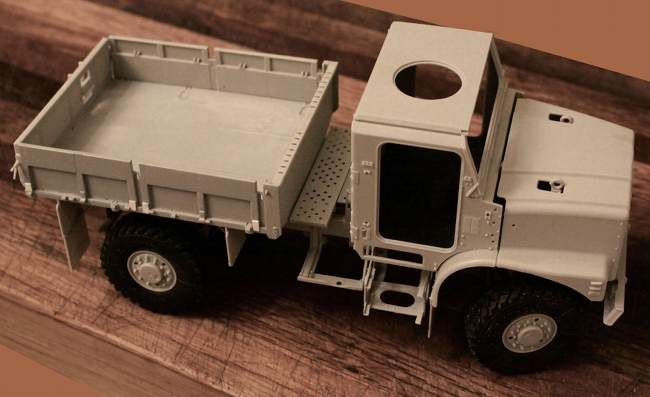

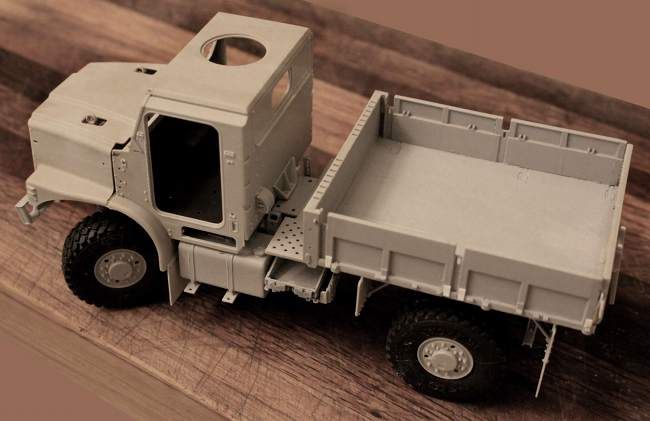

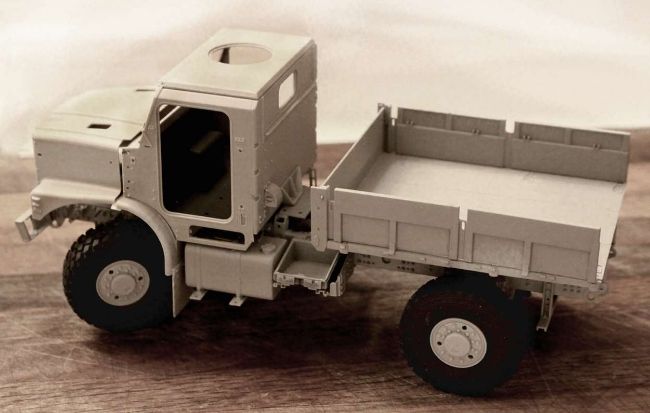

A couple of progress photos on the short bed:


165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Sunday, January 29, 2017 - 09:46 AM GMT+7

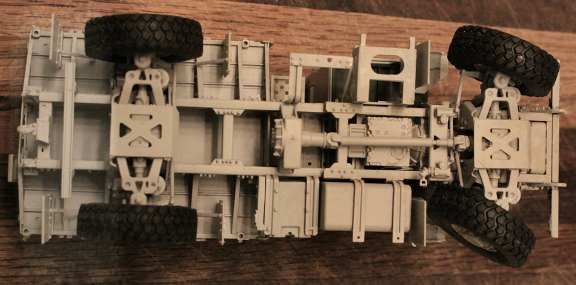

Bottom view of the 4x4.
DocEvan
Visit this Community
California, United States
Member Since: August 09, 2014
entire network: 156 Posts
KitMaker Network: 0 Posts
Posted: Monday, January 30, 2017 - 02:36 PM GMT+7
We LIKE!
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Wednesday, February 01, 2017 - 03:45 PM GMT+7
Many thanks Evan - - Mike
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Friday, February 03, 2017 - 11:23 AM GMT+7

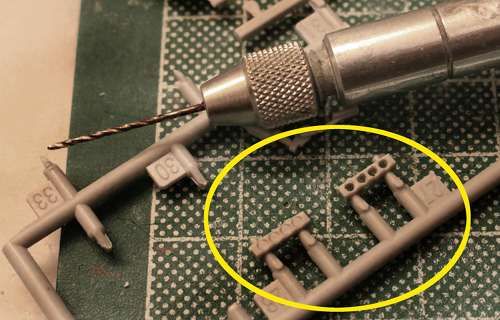

Another small detail that I just "HAD" to add to both the 4x4 and the 8x8:

The two mounting brackets under the hydraulic oil reservoir (just behind the cab) are supposed to be perforated. I think Trumpeter really should have added these two items to the PE sheet.

I used a twist drill to give myself a starting hole and then finished by enlarging the starting hole with a #11 E-Xacto blade.



165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Friday, February 03, 2017 - 11:24 AM GMT+7

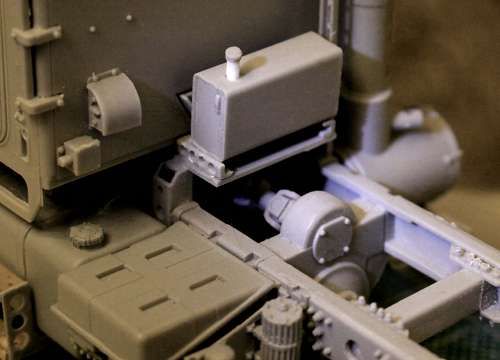

For the finished tank I also needed to add the missing filler cap. A piece of sprue and a little bit of plastic rod did the job.


There will be input and outflow hoses added to the reservoir as well - more on this later.

Footnote: That small detail on each end of the reservoir is the sight glass for checking the fluid level.

___________________________________________________________________________________


For greater clearity I am going to split off the construction of the 4x4 bobber truck to a separate thread.


Here is the link to the new thread:

http://www.armorama.com/modules.php?op=modload&name=SquawkBox&file=index&req=viewtopic&topic_id=255243
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Monday, February 06, 2017 - 11:33 AM GMT+7
Time to get started on that rear steering gear for the big MTVR:

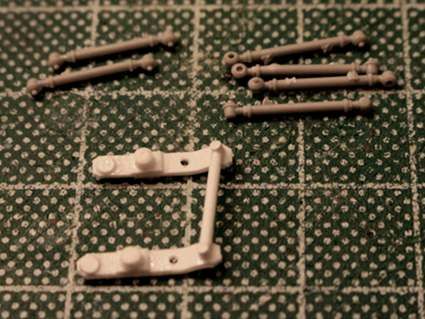

Scratch built pitman arms and cross link:
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Monday, February 06, 2017 - 01:18 PM GMT+7

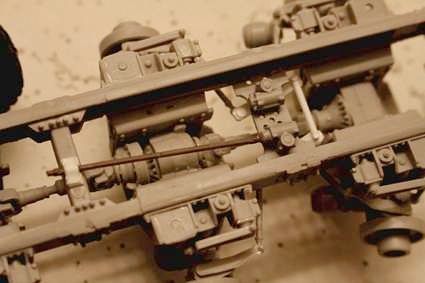

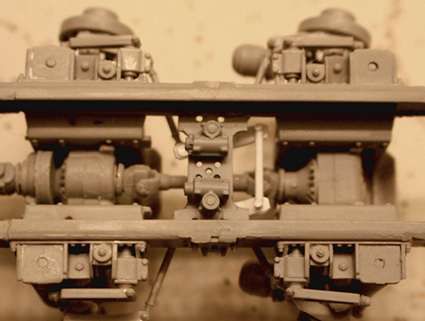

Top view of steering gear with pitman arms and linkage installed:


View from below:

Still need to finish four more brake cylinders.
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Monday, February 06, 2017 - 01:21 PM GMT+7
Final addition for the time being: first section of steering column shaft with universal joints and bearing (pillow) blocks.
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Wednesday, February 08, 2017 - 12:35 PM GMT+7
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Thursday, February 09, 2017 - 09:26 AM GMT+7

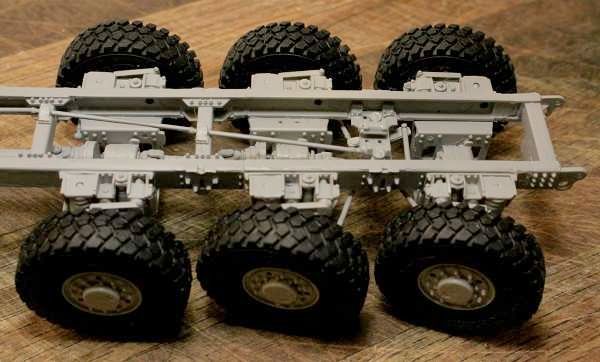

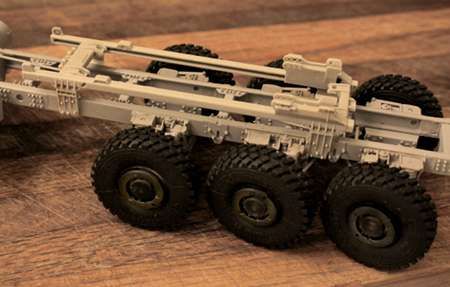

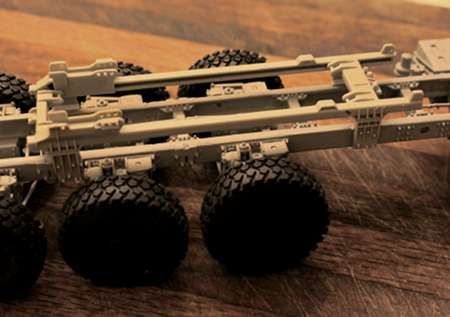

A few more progress shots:


Taylornic
Visit this Community
Tennessee, United States
Member Since: January 10, 2005
entire network: 316 Posts
KitMaker Network: 0 Posts
Posted: Friday, February 10, 2017 - 08:23 AM GMT+7
Those rear drives are a work of art. Very nice job!
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Friday, February 10, 2017 - 08:54 AM GMT+7
Thanks Taylor. I think we can thank Oshkosh for the easy way these modular units go together, building block style. And it works equally well in both 1/35th and 1 to 1 scales.
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Tuesday, February 14, 2017 - 03:28 PM GMT+7

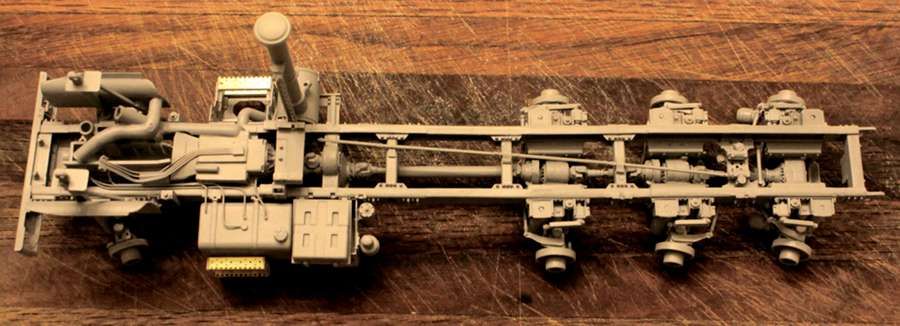

More progress on the rear steering shaft. In front of the transfer case the shaft will angle down, duck below the transmission and then run forward to the main steering boxes.
HeavyArty
Visit this Community
Florida, United States
Member Since: May 16, 2002
entire network: 15,607 Posts
KitMaker Network: 1,815 Posts
Posted: Tuesday, February 14, 2017 - 03:34 PM GMT+7
Nice job on the rear steering shaft.
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Tuesday, February 14, 2017 - 04:57 PM GMT+7
Thanks Gino.

The only reference I have shows the rear steering shaft angling towards the passenger side of the cab. Therefore I have to assume it connects to the slave steering box up front.
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Wednesday, February 15, 2017 - 06:33 AM GMT+7
What the mailman delivered . . .

Today I received my second copy of the "new" Italeri HEMTT with the LHS flatrack gear.

HeavyArty
Visit this Community
Florida, United States
Member Since: May 16, 2002
entire network: 15,607 Posts
KitMaker Network: 1,815 Posts
Posted: Wednesday, February 15, 2017 - 06:40 AM GMT+7
Nice. Now what are you going to do with that extra HEMTT? I have a spare cargo bed if you want it. Just let me know.
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Wednesday, February 15, 2017 - 06:41 AM GMT+7
This mechanism built by MULTILIFT of Britain is going to be a necessary addition for building my Mk ?? 16.5 ton Navy LHS.


Look at all that beautiful bolt head detail!

Very glad to report that the frame rail spacing on the HEMTT and the Mk23 IS THE SAME! (I think Oshkosh might have had a plan in mind here.) So the LHS MULTILIFT equipment drops right onto the Navy truck!
