My first HEMTT - the Italeri LHS
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,463 Posts
KitMaker Network: 58 Posts
Posted: Monday, March 27, 2017 - 04:58 PM GMT+7
Last night's productivity: the hydraulic assembly for the dump bed.



165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,463 Posts
KitMaker Network: 58 Posts
Posted: Monday, March 27, 2017 - 05:07 PM GMT+7
Cannot take credit for the engineering. I just followed the exploded drawings in the FUERMA catalog and eyeballed the overall model dimensions to fit the large truck.


(Fuerma online images reproduced here for discussion and research only.)
Stickframe
#362
Visit this Community
California, United States
Member Since: December 01, 2013
entire network: 1,088 Posts
KitMaker Network: 12 Posts
Posted: Monday, March 27, 2017 - 06:05 PM GMT+7
Hi Mike - that looks great - good work, very nicely done!

Cheers
Nick
mother
Visit this Community
New York, United States
Member Since: January 29, 2004
entire network: 3,821 Posts
KitMaker Network: 1,116 Posts
Posted: Monday, March 27, 2017 - 06:48 PM GMT+7
Real nice detail and scratchbuilding Mike...quick question, the wood sides for bed...evergreen and scratched using xacto?

Joe
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,463 Posts
KitMaker Network: 58 Posts
Posted: Tuesday, March 28, 2017 - 07:12 AM GMT+7
I use both Evergreen and Plastruct styrene (whatever is available) then drag a medium fine saw blade, long ways over the "wood" a number of times to create the grain. (If you rough up the strip too much just hit it with a little course sand paper to knock some of the grain off.)



I "distress" the styrene strip one board at a time so the pattern on one board never flows over onto the next. I love the "see through" effect between the boards when building something board by board. (I only put glue where the actual attachment points would be on the structure as in the end braces and the riveted metal straps. I never glue the boards along their edges, side to side.)
mother
Visit this Community
New York, United States
Member Since: January 29, 2004
entire network: 3,821 Posts
KitMaker Network: 1,116 Posts
Posted: Tuesday, March 28, 2017 - 07:42 AM GMT+7
Nice...thanks. How did you make out on the brake chambers. I took the ones from Trumpeters HEMITT and casted a boat load for my builds.

Happy Modeling,
Joe
Bigred69
Visit this Community
Armed Forces Europe, United States
Member Since: December 27, 2015
entire network: 206 Posts
KitMaker Network: 6 Posts
Posted: Tuesday, March 28, 2017 - 07:55 AM GMT+7
Hello Mike, I like what your Evil mind comes up with. Who knows, maybe one day we will sent older HEMTT's civil colors with different bodies in the back. Just think of the left over vehicles from WWII! Keep up the good work, you are a guiding light to the Truck building side of military vehicles. Ronnie
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,463 Posts
KitMaker Network: 58 Posts
Posted: Tuesday, March 28, 2017 - 08:08 AM GMT+7

Quoted Text

Nice...thanks. How did you make out on the brake chambers. I took the ones from Trumpeters HEMITT and casted a boat load for my builds.

Happy Modeling,
Joe



One gentleman here on the site was nice enough to send me sufficient brake actuators to do two trucks, so for the moment I'm good. Also the actuators are now available from Mike Goldberg, on the Shapeways digital printing site as well. (See link below.)

https://www.shapeways.com/product/UWGL7XN6U/1-35-hemtt-brake-cylinders-msp35-027?optionId=61301053&li=marketplace
mother
Visit this Community
New York, United States
Member Since: January 29, 2004
entire network: 3,821 Posts
KitMaker Network: 1,116 Posts
Posted: Tuesday, March 28, 2017 - 08:16 AM GMT+7
Was that Matt, he live nears me and he does a lot of CAD and Shapeways stuff. I also did other truck bits and conversions for American Army Trucks and Engineer Vehicles. I also have the 800 series 5ton trucks.

Joe
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,463 Posts
KitMaker Network: 58 Posts
Posted: Tuesday, March 28, 2017 - 08:34 AM GMT+7
No not Matt.
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,463 Posts
KitMaker Network: 58 Posts
Posted: Tuesday, March 28, 2017 - 05:24 PM GMT+7
HEMTTs in civilian service:















I think that first photo is a real beauty - a lot of chrome and a very nice paint job!
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,463 Posts
KitMaker Network: 58 Posts
Posted: Wednesday, March 29, 2017 - 04:20 AM GMT+7
Other examples of the distressed styrene "wood" technique:


Heavy duty scratch built 7 1/2 ton loadbox for Mack NO.

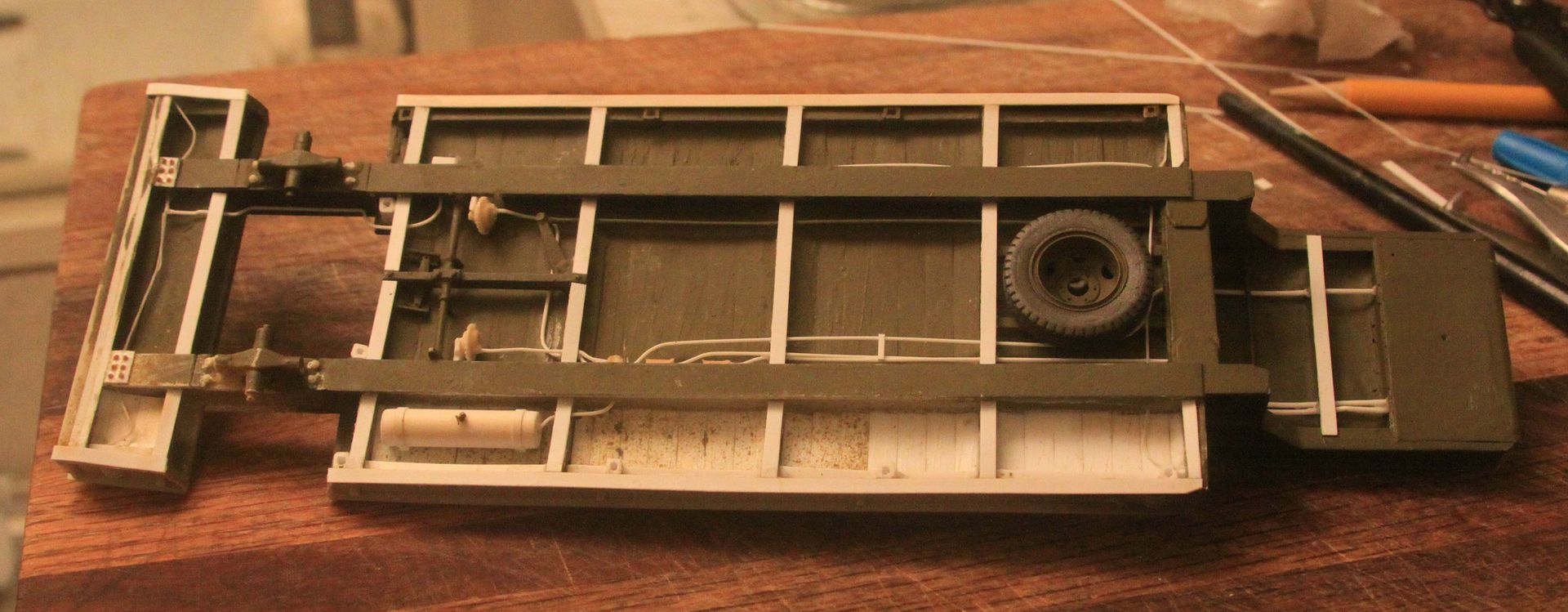

Under body flooring detail added to resin US 20 ton flatbed trailer.


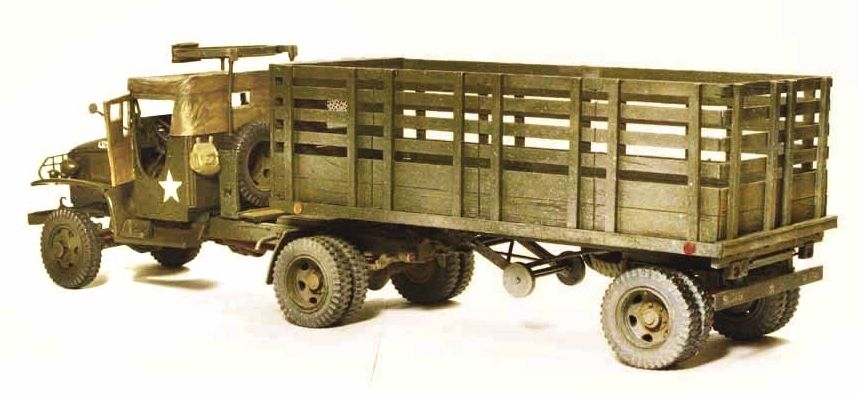

Scratch built four ton US trailer.

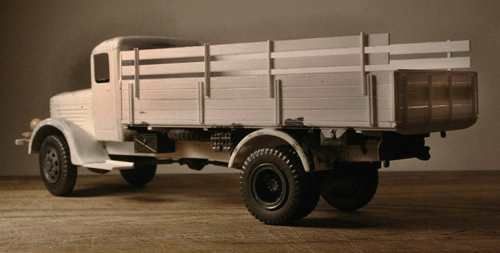

Scratch and vac-formed Bussing-Nag truck.

165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,463 Posts
KitMaker Network: 58 Posts
Posted: Thursday, March 30, 2017 - 01:26 AM GMT+7
Not exactly civilian:

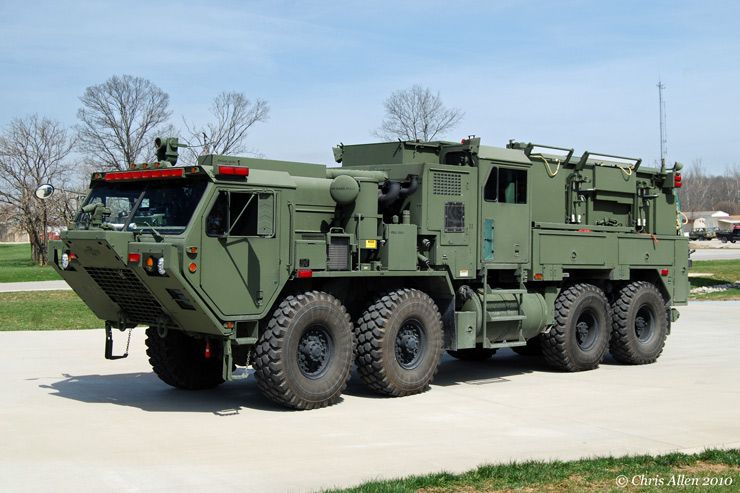

Camp Atterbuey Joint Base HEMTT Fire Truck

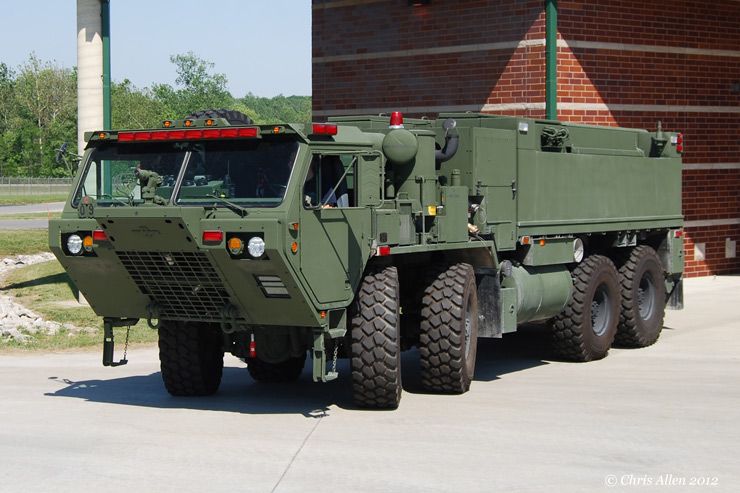

CAFD HEMTT Fire Tender (Water Truck) - Check out the steering angles of the front tires.

(Both photos Chris Allen - used here for discussion purposes only.)
HeavyArty
Visit this Community
Florida, United States
Member Since: May 16, 2002
entire network: 15,592 Posts
KitMaker Network: 1,813 Posts
Posted: Thursday, March 30, 2017 - 03:14 AM GMT+7
Black Dog has a resin set to build the first HEMTT fire truck you posted.
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,463 Posts
KitMaker Network: 58 Posts
Posted: Thursday, March 30, 2017 - 05:33 AM GMT+7
There was a review thread about this fire engine conversion posted recently on Armorama at:

http://www.armorama.com/modules.php?op=modload&name=SquawkBox&file=index&req=viewtopic&topic_id=232592
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,463 Posts
KitMaker Network: 58 Posts
Posted: Thursday, March 30, 2017 - 09:20 PM GMT+7

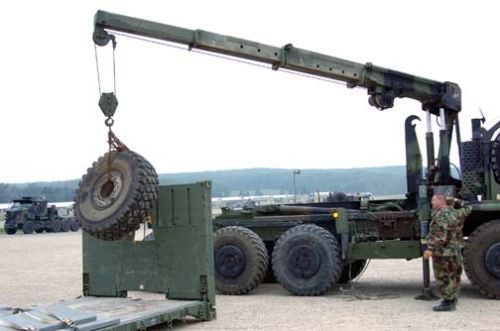

Brief Sidebar Regarding Bulkhead Flatracks: - A couple of detail photos:




Looks like another place for me to use my distressed plastic wood technique. - I know I didn't invent this, it is a very common method for creating wood grain but I thought perhaps sharing some finished examples might help some modelers new to the hobby and also encourage more scratch building.


Plus more reference photos on the Prime Portal website at:

http://www.primeportal.net/odds_ends/m1_pallet.htm
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,463 Posts
KitMaker Network: 58 Posts
Posted: Friday, March 31, 2017 - 04:07 AM GMT+7
I am still thinking about modeling that Hippo water carrier as a possible load for one of my LHS. Additional top view photo found recently online:



More photos and info on the Hippo back on page 23.
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,463 Posts
KitMaker Network: 58 Posts
Posted: Saturday, April 01, 2017 - 09:35 AM GMT+7
Progress on the crane - more pictures at:

http://armorama.kitmaker.net/modules.php?op=modload&name=SquawkBox&file=index&req=viewtopic&topic_id=256601&page=2#2181441
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,463 Posts
KitMaker Network: 58 Posts
Posted: Sunday, May 21, 2017 - 09:14 AM GMT+7
Has anyone heard anything further on Trumpeter's release of their HEMTT LHS with the container handling device?
RotorHead67
Visit this Community
Virginia, United States
Member Since: May 07, 2003
entire network: 1,170 Posts
KitMaker Network: 161 Posts
Posted: Wednesday, May 24, 2017 - 12:55 AM GMT+7

Quoted Text

My latest distraction: I got it in my head that I wanted to build a non-standard HEMTT, so I concocted a free-lanced civy HEMTT with mid-ships mounted crane and a hydraulic dump bed.





The US Army has PLS type Heavy HEMTT'S with a dump body,cement mixer,and bituminous liquid plant,water or fuel plant rack
HeavyArty
Visit this Community
Florida, United States
Member Since: May 16, 2002
entire network: 15,592 Posts
KitMaker Network: 1,813 Posts
Posted: Wednesday, May 24, 2017 - 01:29 AM GMT+7

Quoted Text

The US Army has PLS type Heavy HEMTT'S with a dump body,cement mixer,and bituminous liquid plant,water or fuel plant rack



Yup...

M1075 PLS with Engineer Mission Model (EMM) "Concrete Plant" flat rack.



M1075 w/ Dump Bed flat rack.


M1075 w/ Water/Fuel Distribution flat rack.



165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,463 Posts
KitMaker Network: 58 Posts
Posted: Friday, June 09, 2017 - 07:41 AM GMT+7
Well again you guys are talking about a 10x10 PLS with the dump body. My "distraction" vehicle was just an exercise in freelancing a different sort of HEMTT as an experiment and also to make use of an over-abundant supply of spare HEMTT parts.

Would the PLS dump body fit the HEMTT LHS ??????
HeavyArty
Visit this Community
Florida, United States
Member Since: May 16, 2002
entire network: 15,592 Posts
KitMaker Network: 1,813 Posts
Posted: Friday, June 09, 2017 - 07:47 AM GMT+7
It should. The above are all standard flatrack size. I don't know about the weight limits though.
sgtsauer
#065
Visit this Community
Missouri, United States
Member Since: March 30, 2002
entire network: 2,549 Posts
KitMaker Network: 649 Posts
Posted: Friday, June 09, 2017 - 06:53 PM GMT+7
I have photos of the concrete module, dump module and asphalt module available on Prime Portal.

http://www.primeportal.net/hemtt2/brent_sauer/pls_asphalt_module/

http://www.primeportal.net/hemtt2/brent_sauer/pls_concrete_module/

http://www.primeportal.net/hemtt2/brent_sauer/pls_dump_module/


I can also provide a link to my 'One Drive' site where I have the photos stored as well.
Stevie64
Visit this Community
England - South East, United Kingdom
Member Since: July 07, 2015
entire network: 6 Posts
KitMaker Network: 0 Posts
Posted: Friday, September 29, 2017 - 12:46 AM GMT+7
Thank you so much for the links to the manuals.
I'm making a 1:10 RC M984-A0 (The early wrecker with the short cargo bay and the fixed-height crane)and the details shown in the manuals are yielding hard-to-find images.
