My first HEMTT - the Italeri LHS
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Saturday, August 06, 2016 - 12:35 AM GMT+7
OK, a HEMTT newbie question:

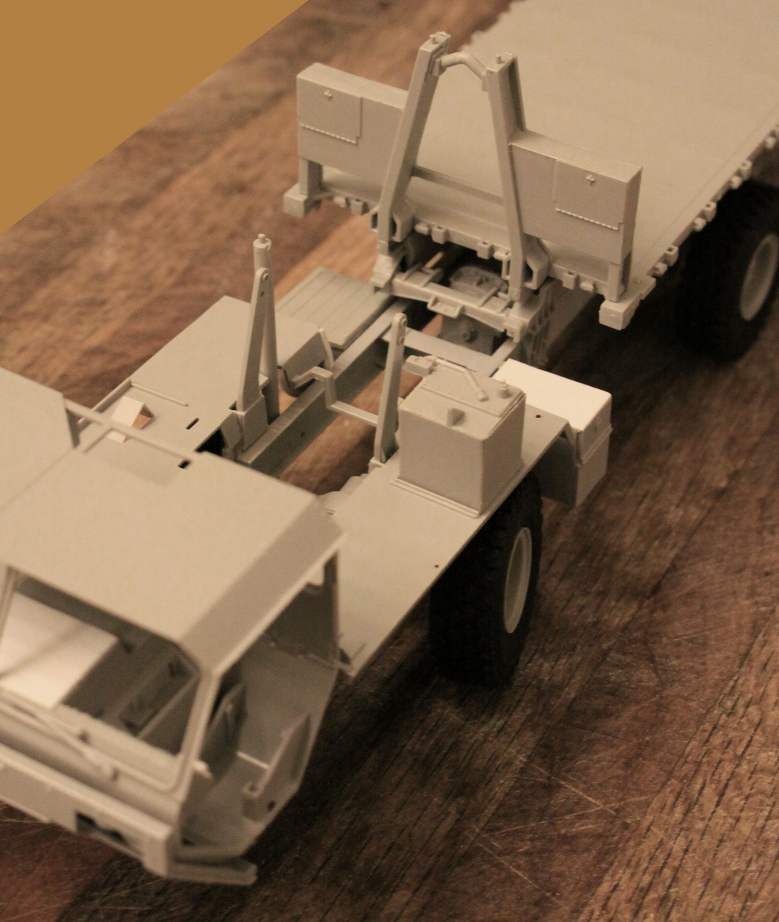

What are the two vertical arms that are mounted to the frame about at the point where the transmission is?

They appear to have bull's eye swivels mounted right at their ends, a lot like the 3 point hitch arms on a farm tractor?????
HeavyArty
Visit this Community
Florida, United States
Member Since: May 16, 2002
entire network: 15,607 Posts
KitMaker Network: 1,815 Posts
Posted: Saturday, August 06, 2016 - 01:06 AM GMT+7
Looking good so far. Keep up the great detailing work.


Quoted Text

What are the two vertical arms that are mounted to the frame about at the point where the transmission is?



They are the forward lift points. Due to the design of the cab, if you try to lift it from the top using the front tow points (under the front cab overhang), you will crush the cab. When lifting it vertically, clevises are attached to these points and the rear lift points and it can be hoisted vertically in this manner.
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Saturday, August 06, 2016 - 03:57 AM GMT+7
That driveline is driving me crazy!

TIme to change to working on something else!



Started this morning building the rear frame extension with all those LHS rollers. (Leaving off the outmost rollers as they might get knocked off during later construction.)
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Saturday, August 06, 2016 - 04:01 AM GMT+7
Also started on the cab:



Using some Evergreen sheet plastic to cover up some unsightly seams and filling in a gap you could see through.


I will be taking care on some of those ejector pin marks but many won't be seen in the final assembly.
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Saturday, August 06, 2016 - 04:29 AM GMT+7


Since this M1120 is actually going to have an engine and radiator I am going to open up all those up and down chimney air vents built into the back of the cab.






I will also have to open up the front panel of the engine housing for all that airflow.
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Saturday, August 06, 2016 - 07:22 AM GMT+7
Thank You Gino - makes perfect sense. Do you think it is ever ok to leave a couple of clevises attached up there?
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Saturday, August 06, 2016 - 07:23 AM GMT+7
Suspension frustration will send you in other directions!

HeavyArty
Visit this Community
Florida, United States
Member Since: May 16, 2002
entire network: 15,607 Posts
KitMaker Network: 1,815 Posts
Posted: Saturday, August 06, 2016 - 07:27 AM GMT+7

Quoted Text

Thank You Gino - makes perfect sense. Do you think it is ever ok to leave a couple of clevises attached up there?



I don't see why you couldn't leave the clevises in place.
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Saturday, August 06, 2016 - 02:36 PM GMT+7
Well - the two center axles are now live!






- and the boy is up off his knees:

Stickframe
#362
Visit this Community
California, United States
Member Since: December 01, 2013
entire network: 1,094 Posts
KitMaker Network: 12 Posts
Posted: Saturday, August 06, 2016 - 05:46 PM GMT+7
Hi Mike -

wow, even with lots of modifications, you are moving fast on this build! Looking forward to seeing more

Cheers
Nick
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Sunday, August 07, 2016 - 01:09 AM GMT+7
Thanks Nick

Had the Saturday all to myself so it was 8am till 11pm working on the truck. Very enjoyable but I might be loosing steam as I head into the new week!
j76lr
Visit this Community
New Jersey, United States
Member Since: September 22, 2006
entire network: 712 Posts
KitMaker Network: 3 Posts
Posted: Sunday, August 07, 2016 - 01:57 AM GMT+7
I built the gun truck version . its a nice kit ! I wish posting pics were easier !!
HeavyArty
Visit this Community
Florida, United States
Member Since: May 16, 2002
entire network: 15,607 Posts
KitMaker Network: 1,815 Posts
Posted: Sunday, August 07, 2016 - 03:25 AM GMT+7

Quoted Text

I built the gun truck version . its a nice kit ! I wish posting pics were easier !!



Posting pics are simple. First host it on a picture site, I prefer Photobucket. Next, copy the url from the photo host site and paste it between the image tags [i m g] post url here [ / i m g] , but without spaces and your photo will show.

[ i m g] http://i1375.photobucket.com/albums/ag455/cjuran1990/DSCF1440_zps4d446202.jpg [/ i m g]

Without spaces...


Not mine, but you get the idea.
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Sunday, August 07, 2016 - 03:53 AM GMT+7
Worked on the LHS sub-frame this morning:

WARNING WARNING: In what you see here the LHS sub-frame has been installed BACKWARDS! My bad!

WARNING WARNING: In what you see here the LHS sub-frame has been installed BACKWARDS!
The two large saddles should be at the rear of the vehicle!

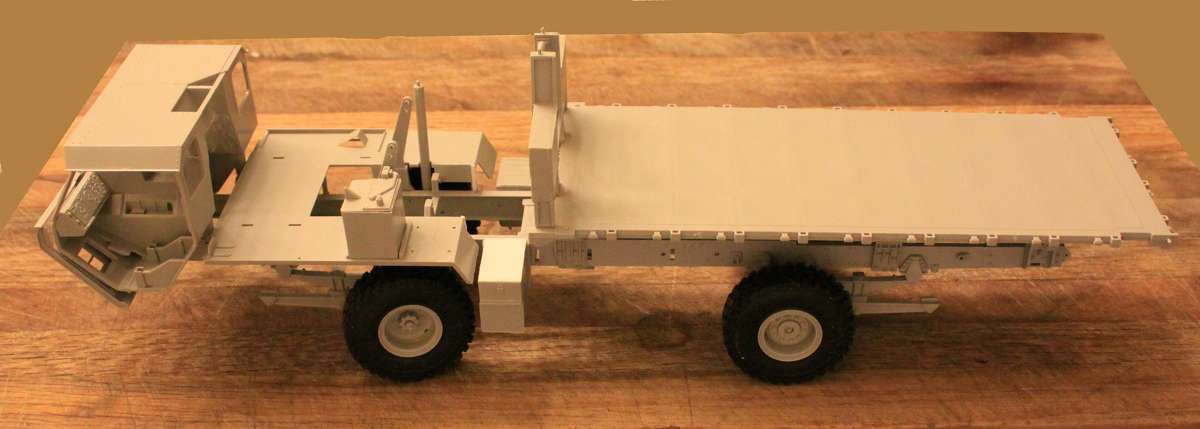

For the first time I can now pose the vehicle with the flat rack in the proper position.

165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Sunday, August 07, 2016 - 04:21 AM GMT+7

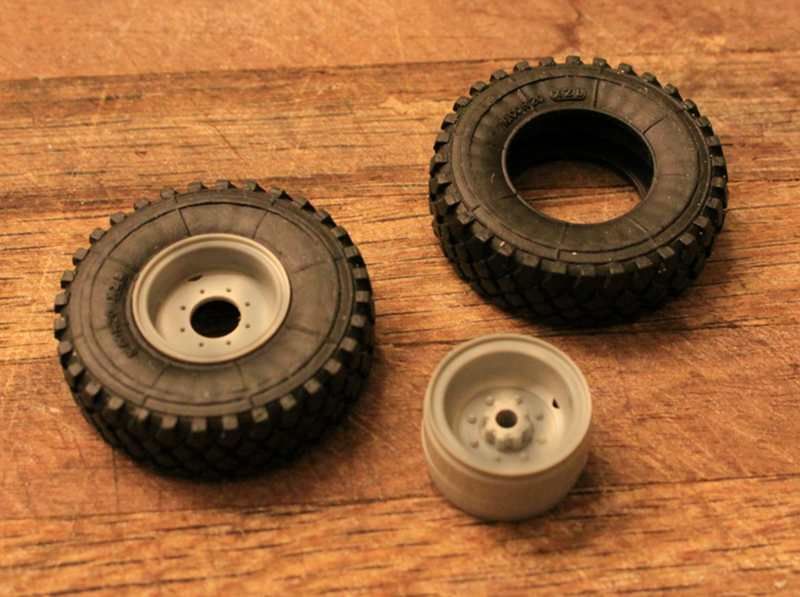

I am liking these new rubber tires more than I did at first! I think I WILL use them instead of going the resin route!

However there seems to be a slight fit problem between the tire and the rim. The rim appears to be a tad bit wider than the tire so the tire doesn't want to "seat" properly on the rim.

I think I have a solution though. More on this later.

165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Sunday, August 07, 2016 - 05:23 AM GMT+7
I really like getting the chance to work with some of these massive (we're talking scale here) components for a change.





165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Sunday, August 07, 2016 - 05:26 AM GMT+7
Armored76
Visit this Community
Bayern, Germany
Member Since: September 30, 2013
entire network: 1,521 Posts
KitMaker Network: 60 Posts
Posted: Sunday, August 07, 2016 - 05:38 PM GMT+7
That's some great progress there and an interesting subject! I wish I had half of your building speed

I'll be watching this myself, for sure!
Taylornic
Visit this Community
Tennessee, United States
Member Since: January 10, 2005
entire network: 316 Posts
KitMaker Network: 0 Posts
Posted: Sunday, August 07, 2016 - 07:07 PM GMT+7
Mike, what's your thoughts on the LHS parts from the kit?
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Sunday, August 07, 2016 - 10:22 PM GMT+7
Taylor, It is difficult to put my finger on it exactly but I can tell you that the new LHS parts have been created using the latest technology and have been engineered with considerably more talent than the original model. The new parts are very well done.

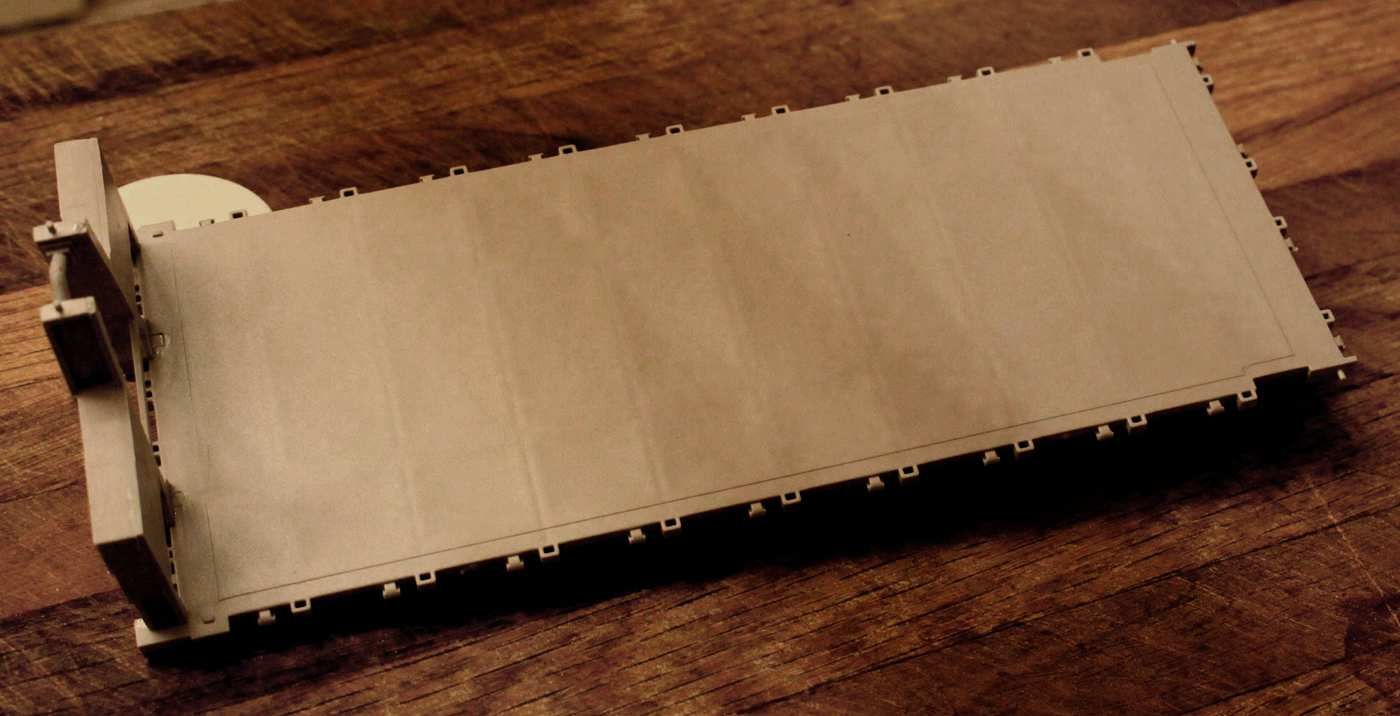

Something that really impressed me was the texture and shaping of the flat rack decking. It would have been very easy for the designers to just give us just a flat, unadorned, boring surface here but no - they went over and above for us.

The photo below falls way short of showing just how nicely done this surface is. The floor of the flat rack has a beautifully done distressed "used" look to it. You see the imprint of the girders below the floor and there is a very natural sag to the sheet metal between the girders as if this rack has seen some moderately hard use. Then too the surface has a very well done natural "tooth" texture to it which is a real relief from the more common grossly smooth flat glossy surface! Great stuff!



Make no mistake the surface treatment to this deck is in no way some sort of simple scheme to hide the typical molding stress lines often found in this type broad flat surface.

This decking is nothing short of a work of art! ! ! It is outstanding!
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Sunday, August 07, 2016 - 10:40 PM GMT+7
Getting ready for that resin engine to arrive!



I have opened up all the air vents that go through the cab as well as cutting open the engine cowl to show off that beautiful engine!

HeavyArty
Visit this Community
Florida, United States
Member Since: May 16, 2002
entire network: 15,607 Posts
KitMaker Network: 1,815 Posts
Posted: Sunday, August 07, 2016 - 11:35 PM GMT+7
Looing really good. The flat rack parts and the lift mechanism for it look really top notch. They should blend perfectly with the Trumpeter M983 parts for mine.
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Monday, August 08, 2016 - 12:17 AM GMT+7

Quoted Text

Looing really good. The flat rack parts and the lift mechanism for it look really top notch. They should blend perfectly with the Trumpeter M983 parts for mine.



Gino, I think you are right on with that idea. I have not gotten my hands on the new HEMTT but from what I have seen the two should work together very well and show the same level of accomplishment and technique.

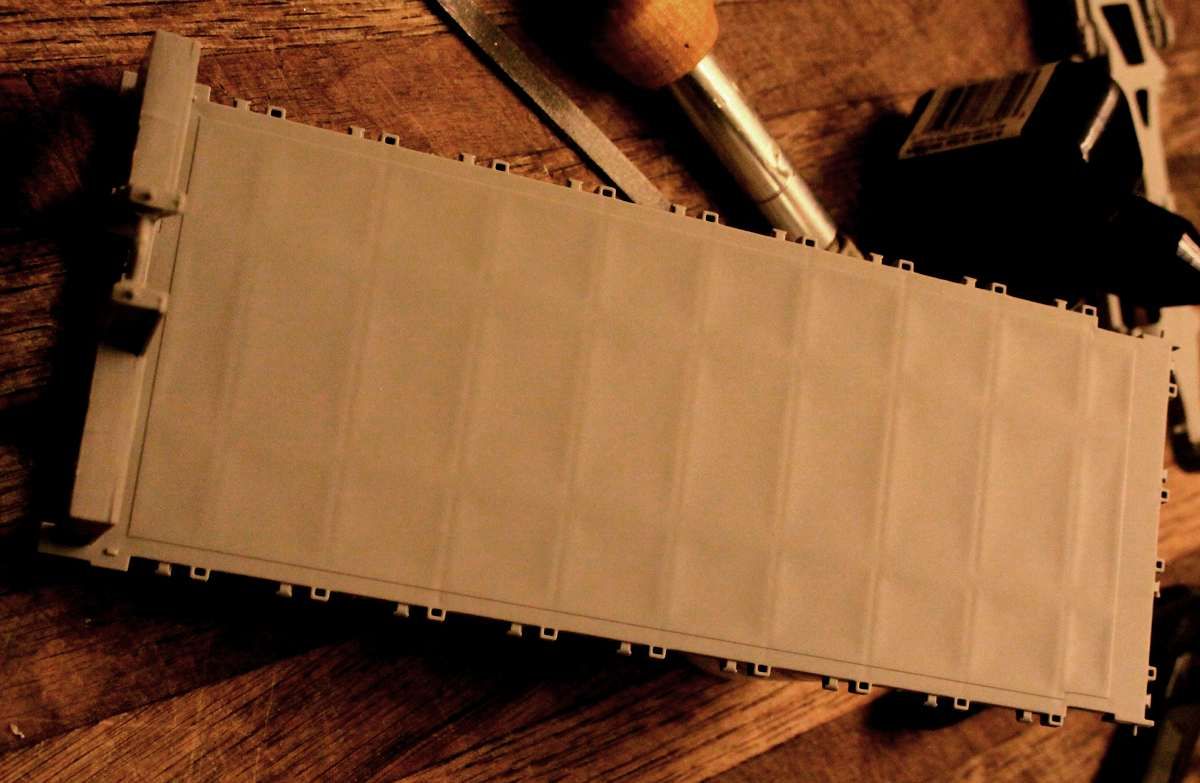

I tried again with the camera. Here is perhaps a better shot of the deck texture.

165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Monday, August 08, 2016 - 12:21 AM GMT+7
A couple more shots along those same lines:





I am sweating a bit over the idea of trying to glue those hydraulic cylinders together and have them function properly!
165thspc
Visit this Community
Kentucky, United States
Member Since: April 13, 2011
entire network: 6,528 Posts
KitMaker Network: 74 Posts
Posted: Monday, August 08, 2016 - 01:02 AM GMT+7
One of the reasons I went for this model is that when the flat rack is posed in the unloaded position the frame details and all this massive mechanism can clearly be seen. I like that! This is the primary reason I want the running gear to be as correct as possible! If this were a HEMTT fuel truck I wouldn't care so much.
